Excellent Material Balustrade Infills Stainless Steel Cable Mesh
Fencing For Bridge Railings
Stainless Steel Cable Mesh Fencing Information:
Balustrade infills made of stainless steel cable mesh offer
security and flexibility.
Any courses of the railing can be ideally covered with the cable
mesh. How the stainless steel cable mesh is fastened on site can be
solved individually with various types of connection possibilities.
| Certificate | CE,SGS |
| Cable Structure | 7x7,7x19 |
| Mesh Hole Shape | Diamond |
| Surface Treatment | Polish,pvc coated,black oxide |
| Raw Material | AISI304,AISI316,AISI304L,AISI316L |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Cable Mesh Sample | Free,but the customer need to pay for the freight |
| Mesh Type | Ferruled type for the stainless steel wire rope mesh |
| Panel Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m |
| Available Colors | stainless steel primary color,black,red,blue,white,custom |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Features | Flexible,strong and x tend,high tensile and soft,light wight and
long service life |
| Widely Usages | Railing Infill Mesh,Balustrade and balcony Mesh,Safety Mesh,Zoo
Enclosure,etc. |
Stainless Steel Cable Mesh Fencing Specifications :
Stainless steel cable mesh fencing detailed description:
Stainless Steel Cable Mesh Fencing For Bridge Railings |
| Item | Wire Diameter | Mesh Hole Size | Normal Break |
| inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other
is knotted also named inter - woven type.You can choose anyone you
prefer.
What's the advantages of the stainless steel rope mesh:
- Weather-resistant and highly durable
- Certified and collision-tested to EN12600:2002
- Systems manufactured bespoke to meet project needs
- Available in a wide range of frame, finishing and fitment options
- High-grade 316 stainless steel for long-life performance and low
maintenance
If you are interested in our metal rope mesh product please feel
free to contact us.
Why we choose the stainless steel cable mesh fencing for bridge
railings?
- High strength, resistant to fatigue and impact.
Ferrules combine stainless steel ropes firmly, making the mesh form
a strong whole. Therefore, stainless steel ferrule rope mesh is
resistant to fatigue and impact.
The rope construction is 7 × 7 or 7 × 19, making stainless steel
ferrule rope mesh very soft. Therefore, it can be curved and folded
easily, which makes it effortless to transport. And this property
also makes it easy to install. Above all, it will not hurt hands.
- Excellent rust-resistance, recyclable and durable.
Stainless steel ferrule rope mesh is made up from 304, 316, 304L or
316L, so it is resistant to rust. Its life span can be up to more
than 30 years as a result.

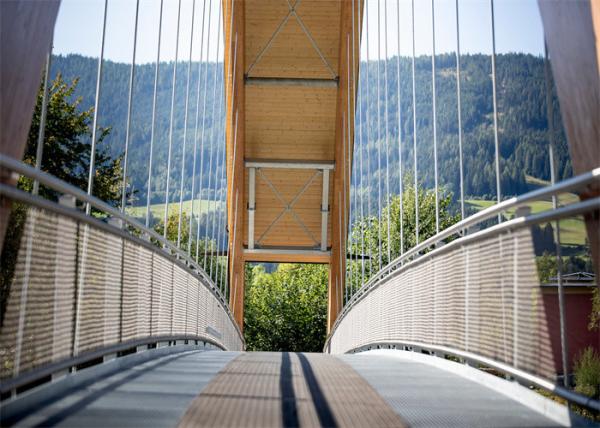

Stainless Steel Rope Mesh Netting Case In Austria:
Stainless steel cable mesh fencing details:
Material : stainless steel 316
Wire Diameter : 1.6mm
Mesh Aperture : 40 x 40mm
Panel Size : 90m (long) x 0.65m (high)
Mesh Type : ferruled type
Mesh Orientation : vertical
Stainless steel cable mesh fencing for bridge railings is installed
as a protective wall for tha balustrade infill mesh. And it is with
high flexibility and strength, so it can guarantee the safety of
people.
Packing And Delivery Details :
Plastic foam and Water-proof Cloth for inter packing ,Fumigated
wooden cases for outer packing.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
Lead time:The order could be arranged within 24hours, lead time is
between 7-15 days depending on the quantum of order.
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be
provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as
the stainless steel wire rope mesh,decorative net,metal aluminum
mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money
Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope
mesh products. Different application scenarios of rope mesh comes
with different accessories,we will provide you with a detailed
installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA,
Germany, Thailand,South Korea and so on.
