Flexibility 50*50mm Stairs Safety Ss Rope Mesh For Home And Commercial Guardrails

Stairs Safety SS Rope Mesh Net Details:

Stairs safety ss rope mesh net is a wire mesh fabricated out of woven stainless steel strands. It is weather resistant, extremely robust and requires virtually no maintenance. The ss rope mesh net is suitable for interior and exterior applications. Installed on railings or in stairways, it provides stability and clear guidance. On facades, it can serve as a climbing support mesh for plants or it can set delicate accents as a dividing element in large spaces. The greatest advantage is its delicate structure. Especially in zoo animal enclosures or protective nets, the visual impairment due to the unavoidable barrier is minimal.

Stairs Safety SS Rope Mesh Net Main Parameters :

Stairs safety ss rope mesh net description:

Our product ss rope mesh net is made from high tensile stainless steel rope AISI 304, 304L, 316 or 316L. Meanwhile, these ropes are available in constructions of 7 x 7,7 x 19 or 1 x 19 and wire diameter from 1mm to 4mm. Other specifications can be customization to match your design requirement.

Different Mesh Types :

There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.

Mesh Types	Wire Diameter	Cable Structure	Details	Material
Knotted Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7		SS304,SS304L,SS316,SS316L
Ferruled Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7
Knotted Type	2.0mm,2.5mm,3.0mm,3.2mm,4.0mm	7*19
Ferruled Type	2.0mm,2.5mm,3.0mm,3.2mm,4.0mm	7*19

​

Mesh Types:

• ss rope mesh net with sleeves

The ss rope mesh net standard version with sleeves is a classic. It is versatile, flexible and economical, especially with small rope diameters. The sleeves are made in a specially developed process in our factory by skilled workers. Ss rope mesh net with sleeves is a good choice for all projects where design and cost-efficiency are of prime importance.

• ss rope mesh net without sleeves

Ss rope mesh net without sleeves is even more transparent than the version with sleeves while delivering practically identical strength values. Moreover, there are no troublesome light reflections from the sleeves. Consequently, sleeveless ss rope mesh net is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.

If you are interested in our stainless steel ferrule rope mesh net product please feel free to contact us.

Installation Steps Guide:

1. Firstly : Determine the length and height of flexible stainless steel wire rope mesh direction you received(make sure the stainless steel rope mesh is in the same directions as the frame);
2. Secondly : Stretch the mesh, use Cable-Ties fixed mesh angle on the frame, and from top to bottom in order to secure both sides. (Note: Fixed both sides of the same time downward stretch mesh to shape the mesh hole)
3. Thirdly : Using the single stainless steel wire rope insert the mesh opening in the edge into the frame by winding, this method is the most common way, fast and strong.(Wrap the stainless steel wire rope around the frame)
4. Finally : Press the ferrule with the pliers tool, and cut off cable-ties belt. Now, each of the mesh angle is 60°

​

What can ss rope mesh do for you?

Applications	Description	Picture Show
Fall Protection	ss rope mesh net for balcony infill mesh,bridge,stairs and paths.With high strength,flexibility and inpact resistance.
Architecture Mesh	ss rope mesh net is the ideal to be used as building facades and green wall to encourage growth of climnong plants and generally seen in parking garages and urban greenways,etc.

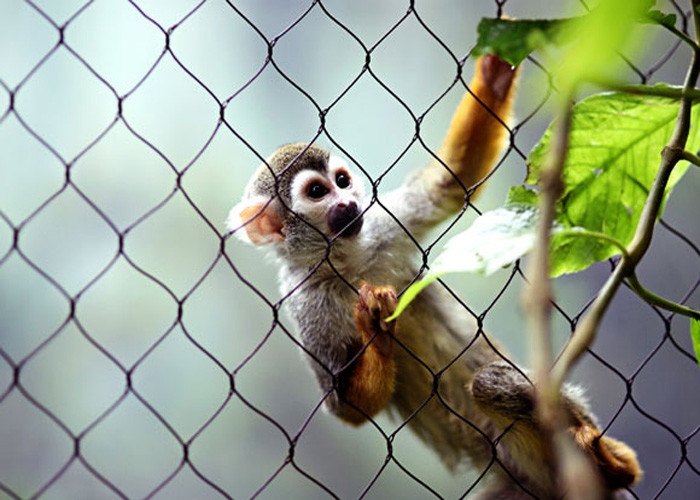

Animal Enclosure & aviary netting	As we know,the ss rope mesh net is usually as zoo mesh and aviary netting,ss rope mesh net is perfect for zoo cages,because it is flexible,soft,flat to prevent impact damages
Fence & safety net	ss rope mesh net is also used as a garden fences,safety fence in stadium partition fence and safety net that prevents suicide to the largest extent.

​

Packing And Delivery Details :

• Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

• Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

• Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.

• As customer's requirements

​About Us:

Several important projects have been completed by Yuntong company in recently years, provide stainless steel ferrule rope mesh and service in good quality for our clients, help them to design the options and install the stainless steel ferrule rope mesh net, and received good reputation from our clients around the world.

Six Reason Why to use the ss rope mesh net:

• High quality material

​Using high quality ss rope mesh material with high strength and thoughness.

• High flexibility

Flexible ss rope mesh structure,high impact resistance and load capacity.

• Anti-corrosion

​Superb corrosion resistance made these ss rope mesh ideal to be used in the harshest condition.

• Long service life

Our ss rope mesh can be used for more than 30 years owing to its great environtment resistance.

• Cost effectiveness

Competitive price,low even no maintenance and long life span allows for high cost effectiveness.

• Easy Installation

Yuntong ss rope mesh net is easy to install,dismantle as well as reused.

​FAQ:

Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.

Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .

Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.

Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.

Q : Which countries do you export to?

A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

​

Founded in 2007. More than 14 years old history. Our clients from more than 60countries, we provide professional services and top quality products for our customers ,our main products: stainless steel wire rope mesh, inox cable webnet,chain link curtain,chain fly screen curtain and decorative mesh.Our company is located in Industrial Park Zone of East Anping County, the famous Wire Mesh Land of China. Our company has the land area of 40,00 square meters, a construction area of 11,00 square meters and a 1W-Grade clean workshop of 1,500 square meters. With over more than 13 years' development, We have followed the vision of "the Best Quality, Timely Delivery, Reasonable Price and Excellent Services" in doing business with our customers. We have won appraisement from our customers with good quality and a high reputation. We sincerely welcome you to visit our factory and would like to establish long-term business relationships with customers both at home and abroad.
