Multifunctional Theftproof Stainless Steel Rope Mesh For Backpack
And Bag

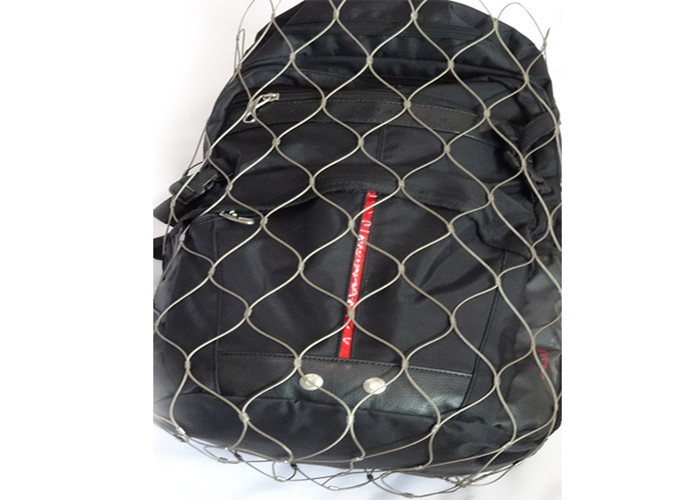

Anti-Theft Bag Stainless Steel Rope Mesh Introduction:
When you travel,you can keep your luggage by your side without
worrying about losing it.
stainless steel anti-theft security stainless steel rope mesh bag
can protect your luggage, supplies, valuables and public goods from
theft.
| Material | SS304,SS316,SS304L,SS316L |
| Mesh Type | Ferruled,Inter-woven |
| Application | Anti-theft bag,safety net,zoo enclosure,Entertainment facilities
safety mesh,Handrail balustrade mesh,etc. |
| Features | Flexible,soft,anti-theft,strong,Durable,support customization |
| Cable Structure | 7*7,7*19 |
| Surface Treatment | Black Oxidation,Polish,PVC Coated |
| Mesh Size | 0.65x1m,0.95x1m,0.8x50m,1x1m,1x2m,1.5x1m,1.5x3m,2x3m,2x6m,2x90m,custom |
| Mesh Hole Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | From 10 x 10mm to 250 x 250 mm or bigger |
| Color | Black,stainless steel primary color,white,red,blue,custom |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Anti-Theft Bag Stainless Steel Rope Mesh Parameter :
Aniti-theft bag stainless steel rope mesh is made of AISI 304 or
316 stainless steel wire rope knotted and twisted by hand, which is
a flexible wire mesh. Anti-theft bag stainless steel rope mesh are
available in a variety of specifications with wire diameters of
various sizes (1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm) to provide
more protection for various animals.
Anti-Theft Bag Stainless Steel Rope Mesh |
| Item | Wire Diameter | Mesh Aperture | Normal Break |
| inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Difference between 304/316 and 304L/316L:
304 / 316 (Carbon content 0.08) and 304L / 316L (Carbon content
0.03). The main difference is the carbon content.
The lower carbon content ensures the stability of the material at
high temperatures, 304L/316L is suitable for high temperature
environments and places near the sea.
Mesh Aperture/Width:
Along with the wire diameter the mesh aperture width contributes to
the aesthetics such as the level of transparency therefore the
larger the width the more transparent it will be. Another
consideration is the climbing ability, which should be taken into
account especially in public places. Our mesh widths range from
24mm to 300mm.
Different Mesh Types :
The anti-theft bag stainless steel rope mesh is hand-made from the
stainless steel wire rope, there are two types: knotted mesh and
ferruled mesh.
- Knotted Type is a kind of plain weave, each warp wire rope crosses
alternately above and below each weft wire rope. Warp and weft wire
ropes generally have the same diameter.
- Ferruled Type is of the same physical properties with the knotted
mesh, the only difference is in the combination style, the
stainless wire rope are combined by the ferrules which are made of
the same grade stainless steel.
Mesh Orientation:
You can choose horizontal or vertical mesh orientations for the entertainment facilities stainless steel wire rope mesh.
Features :
1. Breaking force, impact resistance,
2. Corrosion resistance, anti-soft resistance,
3. Does not require any maintenance etc.
4. Durable structure, beautiful appearance,
5. New form, one-time investment, permanent use,
stainless steel anti-theft security metal wire mesh bag advantages:
- Lightweight, high-strength, never rust, softness.
- Anti-corrosive, resist the rust, can be repeated use.
- The mesh size and diameter can be modified,so we can make the bags
large or small according to your requirements.
- High strength, strong toughness, free-angles curving and fold,it is
discreet and portable.
- Without toxic material, safety, environmental protection.
- Fatigue resistance, impact resistance, breaking force, the overall
structure of the rugged life of more than 30 years.
Main Applictions:
Whether glass lamps or prized facilities, a protective net,
normally made of stainless steel cable mesh, is necessary for
protecting these delicate objects from being damaged without
blocking your sight to these enclosed objects.
Stainless steel rope mesh is one of the best choices for decorating
your home, office and factory owing to its simple structure, high
strength, long lifespan. Most of all, it adds a stylish feel and
low maintenance is required.
As a guidance on stairwell, our range of stainless steel rope cable
mesh combines strength, durability and flexibility together, thus,
it is reliable enough to protect people from falling off.
Meanwhile, flying birds are forbidden to affect climbing.
Packing And Shipping Details :
Plastic foam and Water-proof Cloth for inter packing ,Fumigated
wooden cases for outer packing.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
Lead time:The order could be arranged within 24hours, lead time is
between 7-15 days depending on the quantum of order.
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be
provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as
the stainless steel wire rope mesh,decorative net,metal aluminum
mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money
Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope
mesh products. Different application scenarios of rope mesh comes
with different accessories,we will provide you with a detailed
installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA,
Germany, Thailand,South Korea and so on.
