2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony

    Buy cheap 2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony from wholesalers

    Buy cheap 2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony from wholesalers
    • Buy cheap 2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony from wholesalers
    • Buy cheap 2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony from wholesalers
    • Buy cheap 2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony from wholesalers

    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony

    Ask Lasest Price
    Brand Name : Yuntong
    Model Number : YT-2060F
    Certification : CE,SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2000 square meters per week
    Delivery Time : 5-7work days after getting the advance payment
    • Product Details
    • Company Profile

    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony

    2mm 304 316 Ferrule Type X - Tend Flexible Stainless Steel Cable Mesh For Balcony


    Flexible Stainless Steel Cable Mesh For Balcony Details:


    Railings can prevent falling as a protection net. Children often climb to the railings to play. Stainless steel cable mesh due to their flexibility and various different mesh aperture sizes, in contrast to the stiff railing padding. stainless steel cable mesh fr balcony is an important and diverse application area for stainless steel wire rope net. Stainless steel cable net for balcony can be used as a fall arrest device and meet construction requirements with a light weight. There are many kinds of specifications of the stainless steel cable mesh for choice to meets your reuqirements.

    X-Tend Stainless Steel Cable Mesh Specifications :

    Stainless steel cable mesh detailed description:

    • Cable Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable
    • Mesh Hole Size : 40x40mm,50x50mm,60x60mm,80x80mmcustomized
    • Cable Structure : 7 x7,7x19
    • The breaking load (lbs) : 270 to 1600
    • Mesh type : Inter-woven type (Sleeveless Webnet) and Ferrule Type (Stainless steel ferrule)


    Ferruled Stainless steel Rope Mesh(Ferruled Type)

    ItemCable DiameterMesh Hole SizeNormal Break
    inchmminchmmlbs
    YT-3212F1/83.24.75 x 4.75120 x 1201600
    YT-3210F1/83.24 x 4102 x 1021600
    YT-3290F1/83.23.55 x 3.5590 x 901600
    YT-3276F1/83.23 x 376 x 761600
    YT-3250F3/322.42 x 251 x 511600
    YT-2410F3/322.44 x 4102 x 102920
    YT-2490F3/322.43.55 x 3.5590 x 90920
    YT-2476F3/322.43 x 376 x 76920
    YT-2460F3/322.42.4 x 2.460 x 60920
    YT-2450F3/322.42 x 251 x 51920
    YT-2076F5/642.03 x 376 x 76676
    YT-2060F5/642.02.4 x 2.460 x 60676
    YT-2050F5/642.02 x 251 x 51676
    YT-2038F5/642.01-1/2 x 1-1/238 x 38676
    YT-1676F1/161.63 x 376 x 76480
    YT-1650F1/161.62 x 251 x 51480
    YT-1638F1/161.61-1/2 x 1-1/238 x 38480
    YT-1630F1/161.61.2 x 1.230 x 30480
    YT-1625F1/161.61 x 125.4 x 25.4480
    YT-1238F3/641.21-1/2 x 1-1/238 x 38270
    YT-1230F3/641.21.2 x 1.230 x 30270
    YT-1225F3/641.21 x 125.4 x 25.4270

    Different Stainless Steel Cable Mesh Types :


    There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.

    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony


    Cable Structure Show:



    Stainless Steel Cable Mesh Application :

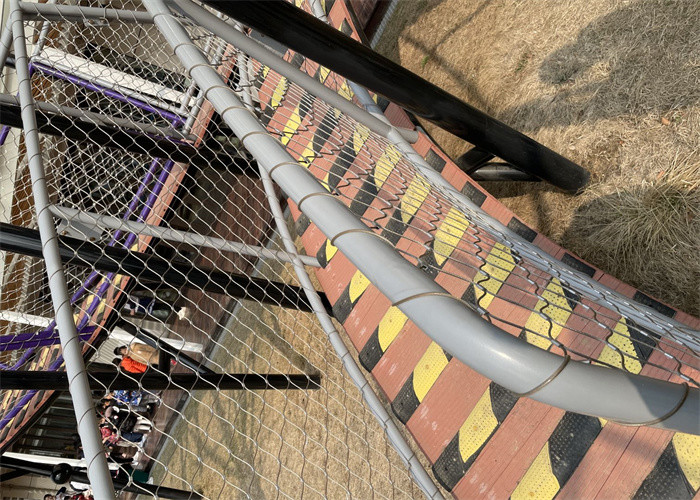

    Stainless steel cable mesh can be used in many areas, like stadium fence mesh, stair protection cable mesh, bridge balustrade mesh, road safety mesh fence, balcony protection mesh etc.


    The following is the common various railing mesh for kinds situations:

    • stainless steel railing cable mesh for spiral staircases

    • stainless steel fall protection railing infill mesh

    • stainless steel cable mesh for balcony protection



    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony


    Packing And Delivery Details :


    • Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

    • Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

    • Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.

    • As customer's requirements


    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony


    Our Services:

    1. Stainless steel cable mesh is customizable to in widths and length to suit the place, where will you install the cable mesh.

    2. Diagonal and irregular shapes can also be supplied.

    3. Mesh Aperture is from 25mm x 25mm to 200mm x 200mm or bigger.

    4. Cable Diameter is from 1.2mm to 4.0mm.

    2mm 304 316 Stainless Steel Ferrule Rope Mesh X Tend Flexible For Balcony
