Ferrule Diamond SS 316 Grade Inox Stainless Steel Wire Cable Net

AISI SS 316 Inox Stainless Steel Wire Cable Net Information:

AISI SS 316 inox stainless steel cable network is manufactured to customer specifications in our own factory. This means there is no limit to the shape and size. The Webnet cable network orientation can be chosen as needed, but for geometric shapes, it is usually arranged vertically or horizontally. In addition, the cable network can provide all colors of the RAL spectrum. Colors can accentuate the web as an architectural design element or allow it to seamlessly blend into the surrounding structure. For Zoo fences or ball barriers, black dye helps make the net more difficult for the human eye to see. Inox cable net has been evaluated against standard specifications and has conducted many test measurements.

Specifications Of Stainless Steel Wire Cable Net :

Wire Diameter : 1.2 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Mesh Aperture (OW X OH) : 20mm x 35 mm to 200mm x 346 mm.it can be made as your requirements.
Feature of inox cable net:All the mesh panel is woven by hand.And the mesh is weave in a specifical way to make the cable go through another cable.So it is tight and strong.

Stainless Steel Cable Mesh material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The standard wire diameter of Stainless Steel cable net includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

Usage Of The Stainless Steel Wire Cable Net:

stainless steel rope fencing for bridge,architectural Mesh,security fence mesh,zoo mesh,aviary mesh,zoo enclosure,balcony infill mesh,plant climbing mesh, green wall,falling prevention mesh and so on.

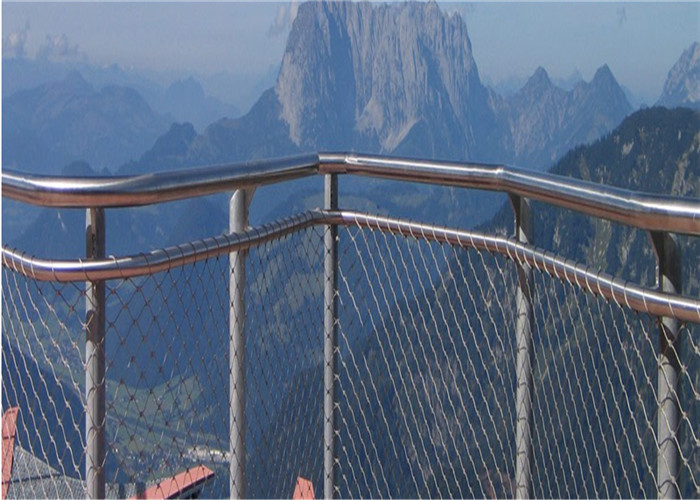

Project Show:

Project Details:

Bridge mesh of Zhangjiakou,China

Material : stainless steel 316

Cable diameter : 1.6mm (7*7)

Hole Aperture:40mm

Opening orientation : Horizatal

Normal Break : 676 Ibs

Characteristics of the stainless steel Cable Mesh:

The ferrule ss316 inox stainless steel wire cable net has the following characteristics:

• Complete specifications and customized sizes
• Stainless steel cable net is corrosion-resistant, non-rusting, high tensile strength, anti-wind, frost, rain and snow, no maintenance
• The inox cable nett is flexibility, good sight, flame retardant, tear resistance, long service life
• The stainless steel cable net is beautiful, high-end atmosphere, enhance the user's taste and the grade of the place used
• Green and environmental protection, without any chemical treatment, can be reused

How to place the order ?

• Wire Diameter and Mesh Aperture : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
• Opening orientation : H or V
• The size ( height and length ) per piece
• Drawing is necessary if available
• Quantity
• When we get your confirmations, then we will be able to offer our exact price timely.
• If you have no ideas please feel free to contact us then we will give you some advices based on your needs.

Notice:

Due to different usage from customers, the mesh size would be different. So we start to produce the cable mesh after the customer tell us the details of the cable mesh's requirements. And the hole size depends on the usage of the cable mesh. By different mesh hole size and stainless steel wire rope diameter, Inox Stainless steel cable net can have different strength to meet the needs for different applications.
