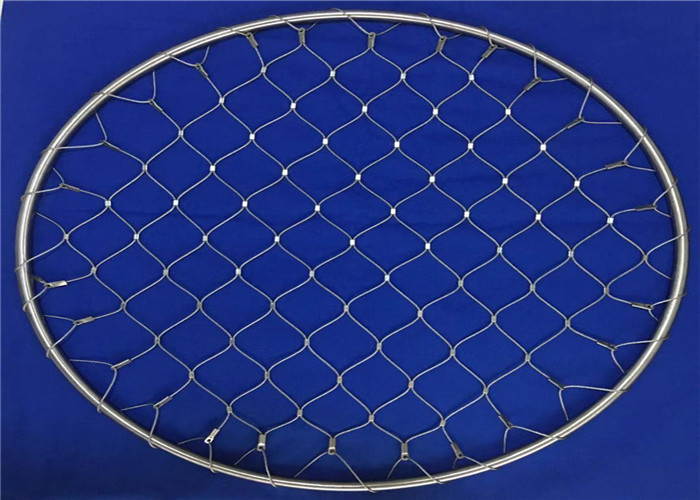

Hand Woven Wire Mesh Netting Security Stainless Steel Metal Mesh
Product Introduction:
Architectural Security stainless steel metal mesh is made of
stainless steel rope twisted up and down and extruded with steel
sleeve. The diameter of the steel wire rope is 1.2, 1.5, 2.0, 3.0,
4.0mm, steel wire rope structure There are 7 * 7, 7 * 19, etc..And
the materials are ss304, ss316, ss316L.
Webnet is a wire mesh fabricated out of woven stainless steel
strands with exceptional tensile resilience and flexibility.It is
weather resistant, extremely robust and requires virtually no
maintenance.The stainless steel net is suitable for interior and
exterior applications.
Installed on railings or in stairways, it provides stability and
clear guidance. On facades, it can serve as a climbing support for
plants or it can set delicate accents as a dividing element in
large spaces.
The greatest advantage, however, is its delicate
structure.Especially in zoo animal enclosures or protective nets,
the visual impairment due to the unavoidable barrier is minimal.
Details Of the security stainless steel metal mesh :
- Various Mesh Eye Sizes: from 25x25mm to 200x200mm,you can choose
any mesh eye size based on your needs.
- Various Wire Rope Diameters: from 1.2mm to 6.0mm.
- Mesh size: We can do the cable mesh according to customers'
requirements.
- Cable Structures: 7x7,7x19
| stainless steel metal mesh (Ferruled Type) |
| Item No.s | Diameter | Mesh Eye Size(W x H) | Normal Break |
| inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Mesh Type:
There are two kinds of the rope mesh,one is the woven type,the
other is the ferruled type.
Wire rope structure:
Delivery And Package Dteails :
Plastic foam and Water-proof Cloth for inter packing ,Fumigated
wooden cases for outer packing.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
As customer's requirements
Stainless Steel Metal Wire Mesh Advantages:
The stainless steel metal wire mesh used are woven of flexible wire
ropes. Their advantages are numerous: they enable space-saving
designs, offer the highest degree of transparency and visual
airiness, guarantee safety for humans and animals and are
convincing due to their low maintenance costs and longevity.
| 1. It can be made to customer orders and statically tested –
especially suitable for facades |
| 2. Anti-corrosive, resist the rust, large breaking force, can be
repeated use. |
| 3. without toxic material, safety, environmental protection. |
| 4. Green and environmental protection, without any chemical
treatment, |
| 5.The netting is clipped to the cable, |
| 6. High strength, strong toughness, free-angles curving and fold,
easy for transportation and installment. |
| 7. The mesh size and diameter can be modified |
| 8. Resists chewing by rodents and other pests (tensile strength
approximately 100-110,000 PSI) |
| 9.Good perspective, luxurious appearance and novel style. |
| 10. Service life is more than 30 years; |
Installation method:
The first type: winding installation, pull the net apart, and fix
the net on the surrounding railings with tie ropes. This is the
simplest and strongest way.
The second type: accessories installation, this method is widely
applicable to all kinds of cement, wood piles, etc.
