Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting

    Buy cheap Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting from wholesalers

    Buy cheap Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting from wholesalers
    • Buy cheap Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting from wholesalers
    • Buy cheap Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting from wholesalers
    • Buy cheap Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting from wholesalers

    Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting

    Ask Lasest Price
    Brand Name : Yuntong
    Model Number : YT-2060F
    Certification : CE,SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2000 square meters per week
    Delivery Time : 5-7work days after getting the advance payment
    • Product Details
    • Company Profile

    Balustrade Stainless Steel Wire Rope Mesh Fence 1.6mm 50mm Galvanised Wire Netting

    Black Oxide Flexible Stainless Steel Wire Rope Mesh Cable Web net For Balustrade Or Railing


    Wire Rope Mesh Specifications Sheet :


    Hole Size

    (Opening)

    1.2MM(3/64)

    (7 x 7 )

    1.6MM(1/16)

    (7 x 7 )

    2.0MM(5/64)

    (7 x 7 )

    2.4MM(3/32)

    (7 x 7 )

    3.2MM(1/8)

    (7 x 19 )

    20 x 35mmYT-1235
    25 x 42mmYT-1225YT-1625
    30 x 52mmYT-1230YT-1630YT-2030
    35 x 60mmYT-1235YT-1635YT-2035
    38 x 66mmYT-1238YT-1638YT-2038YT-2438
    40 x 69mmYT-1240YT-1640YT-2040YT-2440YT-3040
    50 x 86mmYT-1250YT-1650YT-2050YT-2450YT-3050
    60 x 104mmYT-1260YT-1660YT-2060YT-2460YT-3060
    70 x 120mmYT-1270YT-1670YT-2070YT-2470YT-3070
    76 x 131mmYT-1276YT-1676YT-2076YT-2476YT-3076
    80 x 138mmYT-1280YT-1680YT-2080YT-2480YT-3080
    90 x 154mmYT-1290YT-1690YT-2090YT-2490YT-3090
    100 x 173mmYT-12100YT-16100YT-20100YT-24100YT-30100
    120 x 206mmYT-12120YT-16120YT-20120YT-24120YT-30120


    Material of Cable Webnet : Stainless steel 304,304L,316,306L etc.

    SS304(%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035
    SS316(%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
    SS316L(%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

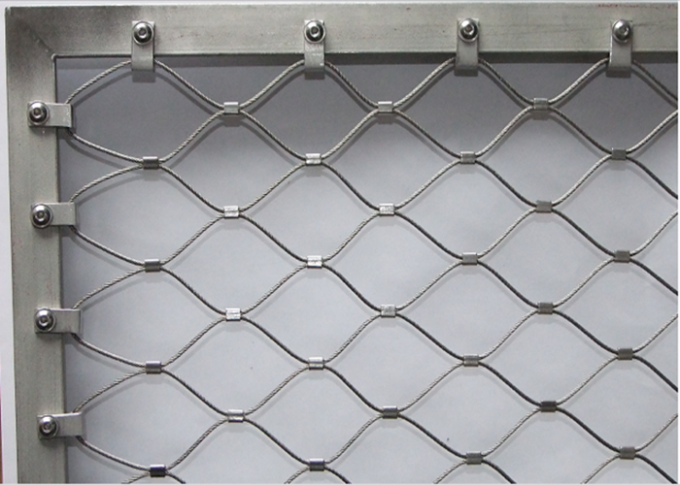

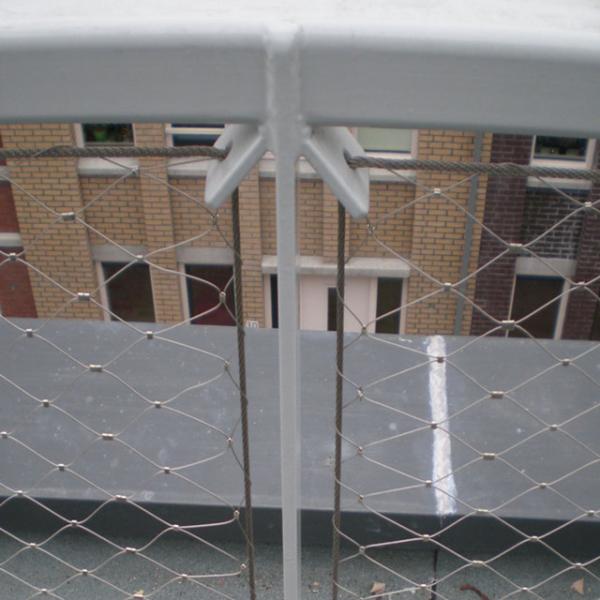

    When stretched at a 60-degree Angle, the finished Rhombus grid pattern can be applied vertically or horizontally, again depending on the design; the grid sizes range from 20 mm to 120 mm or larger, stainless steel cables range in diameter from 1.2 mm to 4.0 mm. Stainless Steel Wire Mesh is custom-made for both width and length to suit your building application. The finished Rhomboid Mesh style is available when stretched at 60 degrees; diagonal and irregular shapes can also be provided. The grid can be applied vertically or horizontally, again depending on the railing or railing design and the required aesthetics.


    Bridge Railings And Balustrade Stainless Steel Ferrule Rope Mesh 60x60mm 0

    Mesh Orientation

    There are two orientations : Horizontal & Knotted .

    Ferruled Type

    Knotted Type
    Material
    SS304 , SS316

    Rope Dia

    1.2mm , 1.5mm , 1.6mm , 2.0mm ,
    2.5mm ,3.0mm , 4.0 mm
    Hole Size

    30mm, 35mm , 35mm , 38mm , 40mm ,50mm , 60mm , 75mm , 100mm etc
    Mesh Type
    Seamless Ferruled & Clips Ferruled
    Orientation
    Horizontal & Vertical
    Finished
    PVC Coated , Black Oxide

    Features of the Webnet

    Stainless Steel Rope Mesh - About Service & Ordering

    Free Sample:
    A sample of less than 1 square feet stainless steel rope mesh is provided free of charge. The requestor needs to incur the courier charges.
    Custom Specification
    Raw Material: Either AISI 316 or AISI 304.
    Panel Size: Our standard size is 8 meter x 8 meter. Upon request, we will manufacture the wire rope netting according to specification.
    Wire Rope Diameter: Ranging from 1.2mm, 1.6mm, 2.0mm, 2.4 mm, and 3.2mm.
    Apertures: Standard apertures are from 102mm x 102mm, 90mm x 90mm, 76mm x 76mm, 60mm x 60mm, 51mm x 51mm, 38mm x 38mm, 25mm x 25mm, 20mm x 20mm.
    For more information, please refer to the Product Specifications Table.
    Color: natural, black, bronze.
    If there are any special requirements for the apertures not shown, please feel free to contact us.
