Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net

    Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers

    Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers
    • Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers
    • Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers
    • Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers
    • Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers
    • Buy cheap Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net from wholesalers

    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net

    Ask Lasest Price
    Brand Name : Yuntong
    Model Number : YT-20100F
    Certification : CE,SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 2000 square meters per week
    Delivery Time : 5-7work days after getting the advance payment
    • Product Details
    • Company Profile

    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net

    Flexible Diamond Ferruled Stainless Steel Rope Mesh Fence For Safety Net



    Ferruled Stainless Steel Rope Mesh Information:


    Ferruled stainless steel rope mesh is suitable for interior and exterior applications.
    Installed on balustrade or in walkways, stainless steel rope mesh fence provides stability and clear guidance. On facades, it can serve as a climbing support for plants or it can set delicate accents as a dividing element in large spaces.


    Ferruled Stainless Steel Rope Mesh Specifications :

    Ferruled stainless steel rope mesh details:

    • Rope material: high quality stainless steel 304, 316, 304L and 316L.
    • Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.
    • Rope construction: 7 × 7 and 7 × 19 are the main used, and 1 × 7 and 1 × 19 are also supplied.

    Ferruled Stainless Steel Rope Mesh Fence

    ItemRope DiameterMesh ApertureNormal Break
    inchmminchmmlbs
    YT-3212F1/83.24.75 x 4.75120 x 1201600
    YT-3210F1/83.24 x 4102 x 1021600
    YT-3290F1/83.23.55 x 3.5590 x 901600
    YT-3276F1/83.23 x 376 x 761600
    YT-3250F3/322.42 x 251 x 511600
    YT-2410F3/322.44 x 4102 x 102920
    YT-2490F3/322.43.55 x 3.5590 x 90920
    YT-2476F3/322.43 x 376 x 76920
    YT-2460F3/322.42.4 x 2.460 x 60920
    YT-2450F3/322.42 x 251 x 51920
    YT-2076F5/642.03 x 376 x 76676
    YT-2060F5/642.02.4 x 2.460 x 60676
    YT-2050F5/642.02 x 251 x 51676
    YT-2038F5/642.01-1/2 x 1-1/238 x 38676
    YT-1676F1/161.63 x 376 x 76480
    YT-1650F1/161.62 x 251 x 51480
    YT-1638F1/161.61-1/2 x 1-1/238 x 38480
    YT-1630F1/161.61.2 x 1.230 x 30480
    YT-1625F1/161.61 x 125.4 x 25.4480
    YT-1238F3/641.21-1/2 x 1-1/238 x 38270
    YT-1230F3/641.21.2 x 1.230 x 30270
    YT-1225F3/641.21 x 125.4 x 25.4270

    What need to know for design ?


    316 grade stainless steel rope mesh fence is high performance cost ratio.
    Heavier wire rope (d) offers higher break loading capacity.
    The smaller opening (OW) of mesh cost expensive.
    Border solution of mesh is necessary for installation.
    Exact piece size of mesh can be manufactured.
    Quality of mesh affects visual effects, using life. safety. maintenance cost etc.


    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net

    Raw Material Of Ferruled Stainless Steel Rope Mesh:

    Stainless steel rope mesh fence is hand-woven from Material 304 or 316 stainless steel ropes by molds. It is a creative product that perfectly used in gardens as the decoration and plant climbing mesh.

    Rope Structure:

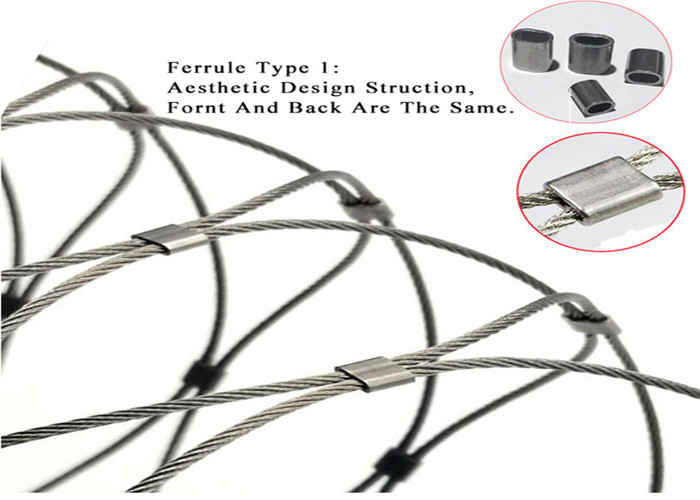

    Stainless Steel Ferrules Details:

    Ferrules Material:stainless steel 304,316,316L

    Size:1.5mm,1.6mm,2.0mm,3.0mm,4.0mm


    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net


    Stainless Steel Rope Net Application :


    The Stainless steel rope net made by Yuntong company is a vibrant, premium-quality product made from the stainless AISI 316 material group: the mesh aperture W x H (variable from very tight to very wide), the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine fucntion and aesthetics.
    In combination with architectural ropes, the mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, facade greening, artwork, ball nets, stairwells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
    The flexible stainless steel rope net mesh with ferrules is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane. As the material is virtually indestructible stainless steel, it can safely contain any species on land.The hole size and diameter can be modified.It can be made to customer orders and statically tested – especially suitable for facades.

    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net


    Packing And Delivery Details :


    • Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

    • Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

    • Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.

    • As customer's requirements

    Flexible Diamond 7 × 7 Stainless Steel Ferrule Rope Mesh Fence For Safety Net


    What are the advantages of stainless steel rope net for plant climbing net plant support?


    • Recyclable.
    • Good price-benefit-ratio.
    • Easy installation and low maintenance.
    • Weave opening meets any exact specification.
    • Complete specifications and customized sizes.
    • Green and environmental protection, without any chemical treatment, can be reused.
    • Metal stainless steel rope mesh net is beautiful, high-end atmosphere, improve user taste and grade of the place used;
    • The stainless steel rope plant climbing net has good softness, good sight, flame retardant, anti-tear and pull, and long service life;
    • The metal mesh plant climbing net is corrosion-resistant, non-rusting, strong in tensile strength, resistant to wind, frost, rain and snow, and does not require maintenance;


    If you are interested in our product or have any problems please don't hesitate to contact us! We will offer you the best product and service!
