Decorative Woven Metal Stainless Steel Wire Rope Used For Railing
Balustrade Infill Panels
Product Basic Information

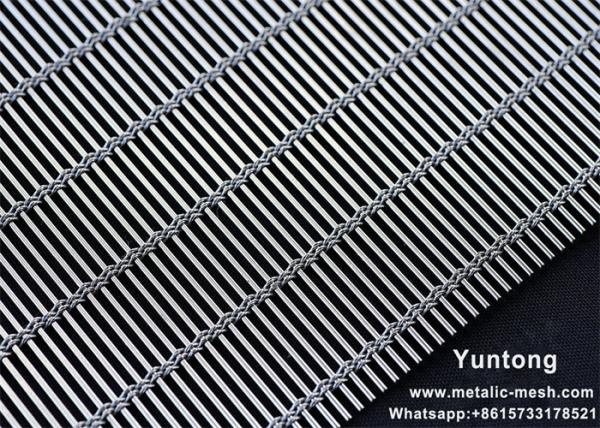

Metal Stainless Steel Wire Rope Used For Railing Balustrade Infill
Panels is a kind of decorative metal mesh.
The stainless steel rope mesh is combined with braided steel cables
and steel rod.Commonly the warp wire is steel cables and the weft
wire is steel rod.
Materials : stainless steel is more popular, aluminum, brass wire and copper
wire,phosphor bronze,and other materials can also be customized.
Vertical wire diamater : 0.5-2.5mm
Horizontal wire diameter : 1.5~8mm
Main parts: cable mesh , cable rod, cable pitch, rod pitch.
Details of Decorative Metal Cable Wire Mesh:
| Material | Sainess steel 304,316,316L |
| Opening Area | 60 % |
| Cable Diameter | 3mm x 3 |
| Cable Pitch | 40mm |
| Rod Diameter | 3mm |
| Rod Pitch | 11mm |
| Weight | 9.5 kg/m2 |
| Surface | Bright |
| Panel Size | As customer's requirements |
Decorative Metal Cable Wire Mesh Specifications:
Item | Open Area | Cable Diameter | Cable Pitch | Rod Diameter | Rod Pitch | Thickness | Weight |
| 1 | 40% | 1 x 1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74 kg/m2 |
| 2 | 43% | 1 x 2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87 kg/m2 |
| 3 | 62% | 2 x 2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41 kg/m2 |
| 4 | 37.20% | 3 x 0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4 kg/m2 |
| 5 | 71% | 3 x 1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.85 kg/m2 |
| 6 | 65% | 3 x 2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67 kg/m2 |
| 7 | 65.9% | 3 x 2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5 kg/m2 |
| 8 | 67% | 3 x 3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6 kg/m2 |
| 9 | 44.3% | 4 x 0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2 kg/m2 |
| 10 | 62% | 4 x 1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55 kg/m2 |
| 11 | 40% | 4 x 2 mm | 50 mm | 3 mm | 6 mm | 7 mm | 11.2 kg/m2 |
| 12 | 42% | 4 x 2 mm | 50 mm | 3 mm | 6 mm | 7 mm | 11.8 kg/m2 |
Main Applications Of Decorative Metal Cable Wire Mesh
Decorative metal wire mesh is made of high-quality stainless steel
wire, aluminum alloy wire, brass wire, copper wire or other alloy
materials. It is a new decorative material in modern construction
industry, Cable mesh products are widely used in interior and
exterior decorations.such as hotel, high buildings, elevators,
luxury office buildings,
grand ballroom, business hall and other buildings.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days .Because the products are customized ,
so here is not the stock.
Q: How cann I get a sample of the decorative architectural wire
mesh to check your quanlity ?
A: After price confirmation,you can require for sample to check our
quality.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,pay for the balance before shippment.
Q: Can you do design for us?
A: Yes. We have a professional team with rich experience about the
stainless steel architactural wire mesh in packaging box designand
manufacturing.
If you have any question, pls feel free to contact us.
Service
We can provide the free samples for you.
Free Design
Quality is guaranteed by SGS
Fast reply within 24 hours
Resonable price directly from our own factory
Timely after-sales guarantee service
