AISI SS316 Diamond Flexible Inox Stainless Steel Wire Cable Net
Rope Mesh For Stair
Stainless Steel Wire Cable Net Description:
The stainless steel wire cable net, especially the ferrule type
mesh, are more used in fields like balustrades on bridges and
staircases, large barrier fences, and building facade trellis
systems.
Stainless steel Wire rope mesh products have various specifications
suitable for different environments. We will recommend the wire
rope diameter, mesh hole and installation suggestions suitable for
each kind of plant according to the different requirements of
customers.
Flexible Stainless Steel Wire Cable Net Specifications :
Mesh Opening :25 x 43mm to 200 x 346 mm
Material:stainless steel 304, 304L, 316, 316L
Wire Rope Construction: 7x7 and 7x19
Wire Rope Diameter: 1/8", 3/32", 1/16", and 3/64"
Mesh Aperture: 1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Stainless Steel Wire Cable Net |
| Item | Cable Diameter | Mesh Aperture | Normal Break |
| inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |

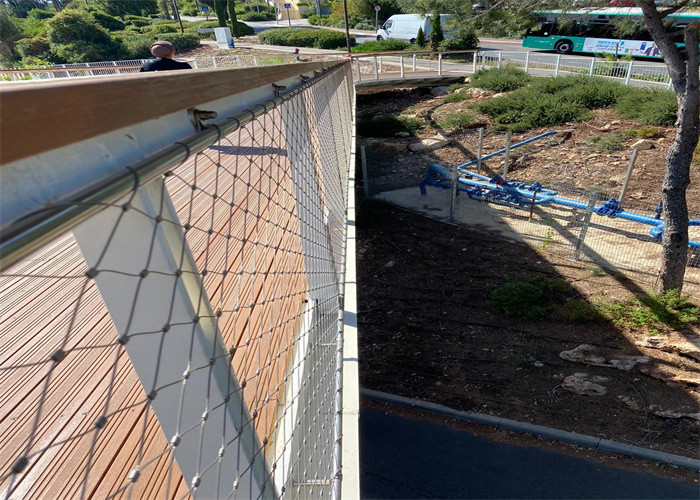

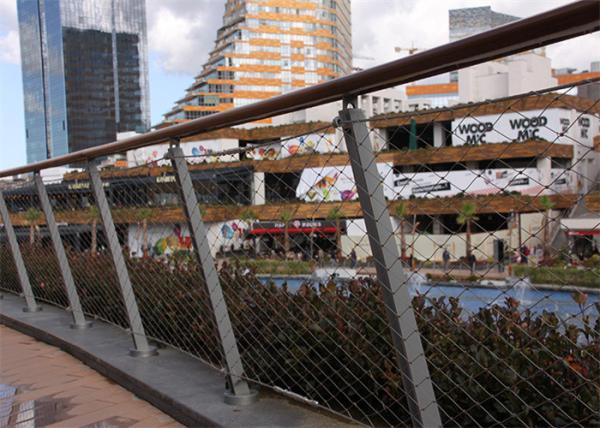

Ferruled Stainless Steel Wire Cable Net Show:
Stainless Steel Wire Cable Net Widely Usages:
Stainless steel wire cable net are widely used in the decoration,
construction and transformation of animal cages, bird nets, animal
fences and gardens in zoos, wildlife parks, marine parks and other
similar environments. In addition, the stainless steel rope mesh is
also suitable for sports, acrobatics, home decoration,
architectural decoration and other fields.
- Balustrades & Staircases
- 3D Structures
- Suspended Ceilings
- Fencing
- Zoo Cages,Aviary Netting ,Animal Enclosure
- Safety Net on Bridges , Buildings or Windows
- Climber Trainer
Different Types For The Stainless Steel Wire Cable Net:
There are many differnt types for the stainless steel wire cable
net,you can choose anyone based on your needs and the installation
envoriments.
What are the advantages of stainless steel wire cable net ?
The stainless steel wire rope webnet produced by Yuntong Metal Wire
Mesh Factory has the following unparalleled advantages:
- Lightweight, high strength, never rust, good flexibility, impact
resistance, large breaking force, strong and durable overall
structure, and service life of more than 30 years;
- Close to nature, green and environmental protection, efficient
protection of bird feathers and animal skin, effectively prevent
rodents and other animals from biting, and give animals a safe and
comfortable living environment;
- Good perspective, luxurious appearance and novel style.
If you are interested in our products,please don't hesitate to
contact with me!
We supply sample for free.
