60*105mm Diamond Stair Railing Infill Stainless Steel Rope Netting
For Safety
Stainless Steel Rope Netting Introduction:
Diamond stainless steel rope netting mesh balustrade railing infill
is constructed from non corrosive stainless steel cables which are
stretched and pre-installed on quality welded tubular frame. With
simple but durable structure, stainless steel rope netting is
preferred to all types of balustrade applications from residential,
semi-public to public spaces. Typically applications for stainless
steel rope netting for safe mesh balustrade are bridges, path,
stairs and balcony.
Specifications Of Stainless Steel Rope Netting :
| Stainless Steel Rope Netting Catalog |
| Item No.s | Cable Structure | Cable Diameter | Mesh Eye Size(W x H) | Normal Break |
| | inch | mm | inch | mm | lbs |
| YT-3212F | 7x19 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1600 |
| YT-3210F | 7x19 | 1/8 | 3.2 | 4 x 6.9 | 102 x 156 | 1600 |
| YT-3290F | 7x19 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1600 |
| YT-3276F | 7x19 | 1/8 | 3.2 | 3 x 5.2 | 76 x 131.6 | 1600 |
| YT-3251F | 7x19 | 1/8 | 3.2 | 2 x 3.46 | 51 x 88.3 | 1600 |
| YT-2410F | 7x7 | 3/32 | 2.4 | 4 x 6.9 | 102 x 176.7 | 920 |
| YT-2490F | 7x7 | 3/32 | 2.4 | 3.55 x 6.15 | 90 x 156 | 920 |
| YT-2476F | 7x7 | 3/32 | 2.4 | 3 x 5.2 | 76 x 131.6 | 920 |
| YT-2460F | 7x7 | 3/32 | 2.4 | 2.4 x 4.16 | 60 x 104 | 920 |
| YT-2451F | 7x7 | 3/32 | 2.4 | 2 x 3.46 | 51 x 88.3 | 920 |
| YT-2076F | 7x7 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| YT-2060F | 7x7 | 5/64 | 2.0 | 2.4 x 4.16 | 60 x 104 | 676 |
| YT-2051F | 7x7 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| YT-2038F | 7x7 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| YT-1676F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 76 x 131.6 | 480 |
| YT-1651F | 7x7 | 1/16 | 1.6 | 2 x 3.46 | 51 x 88.3 | 480 |
| YT-1638F | 7x7 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| YT-1630F | 7x7 | 1/16 | 1.6 | 1.2 x 2.08 | 30 x 52 | 480 |
| YT-1625F | 7x7 | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| YT-1238F | 7x7 | 3/64 | 1.2 | 1-1/2 x 2.6 | 38 x 65.8 | 270 |
| YT-1230F | 7x7 | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| YT-1225F | 7x7 | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| YT-1220F | 7x7 | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Mesh Orientation:
Stair Railing infills stainless steel rope netting is an important
and diverse field of application for stainless steel wire ropes and
stainless steel cable netting. The balcony infills serve as fall
protection and meet the construction requirements with low dead
weight.
There are two kinds mesh orientation,one is Horizontal and the
other is Vertical.Please check the following details.

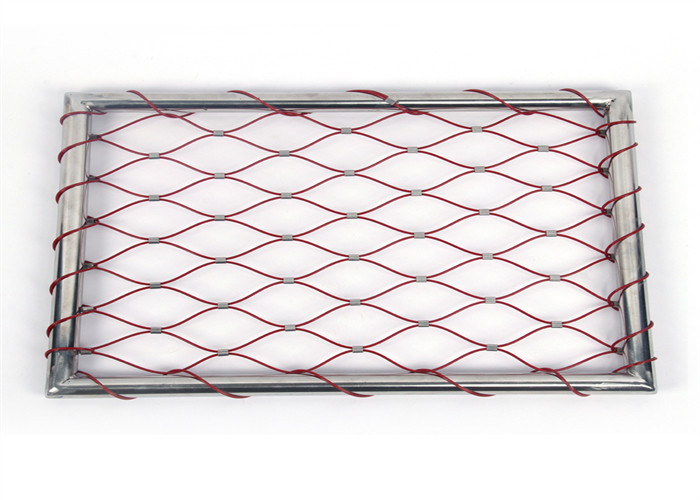

Stainless Steel Rope Netting In Red Color:

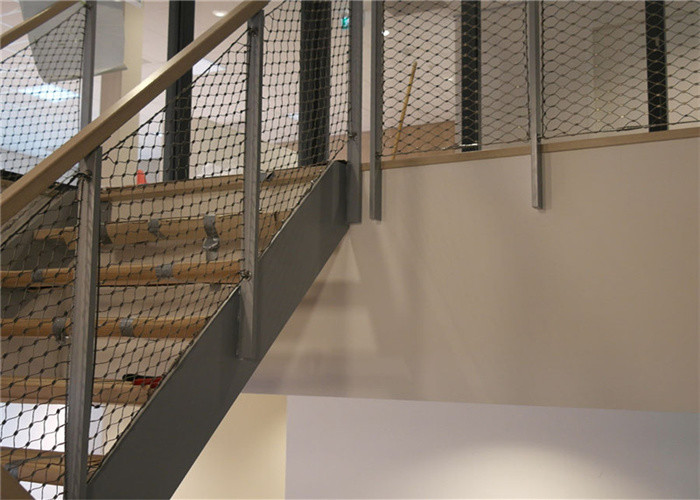

Stainless Steel Rope Netting Project Show:
Balustrade Stair Railing Stainless Steel Rope Netting For Safety
Details:
Material : AISI 316
Cable diameter : 1.6mm (7*7)
Hole Aperture:40*40mm
Panel Size:0.95m(H) X 3m(L)
Mesh End Type: H3
Normal Break : 676 Ibs
Advantages :
1.solid and durable. |
| 2. The mesh Hole size and diameter can be modified. |
3. corrosion resistance. |
| 4. High strength, strong toughness, free-angles curving and fold,
easy for transportation and installment. |
5. Anti-corrosive, resist the rust, can be repeated use. |
6.All models, shapes and materials can be customized. We have our
own factory |
How to place the order ?
- Rope diameter and mesh hole size : such as
1.2mmx25x25mm,2.0mmx60x60mm etc
- Opening orientation : H or V
- The height and length per piece
- Drawing is necessary if available
- Quantity
- When we get your confirmations, then we will be able to offer our
exact price timely.
What is feature of stainless steel wire rope netting ?
1. Mesh designed under high break loading capacity.corrosion
resistant.
2. 100% install guarantee.precsion panel dimension.
3. Suit tube frame or tension rope structure.
4. Irregular shape,large piece of mesh can be manufactured.
What kinds of project we served ?
Railing,balustrade,balcony,staircase infill.park fence.zoo
fence.zoo bird aviary netting.green wall trellis.safety net on
bridge.drop safet net.helideck mesh.
Where the mesh we sold?
United
Kindom,USA,Canada,Czech,Slovakia,Spain,France,Creaze,Singapore,Japan,Australia
etc.
Our Promise:
1.Delivery within delivery time.
2.If you want to have your own mark on the product, we will protect
your information.
3.The best price is to retain the most sincere customers.
4.24 hours online, please contact us if you have any questions.
