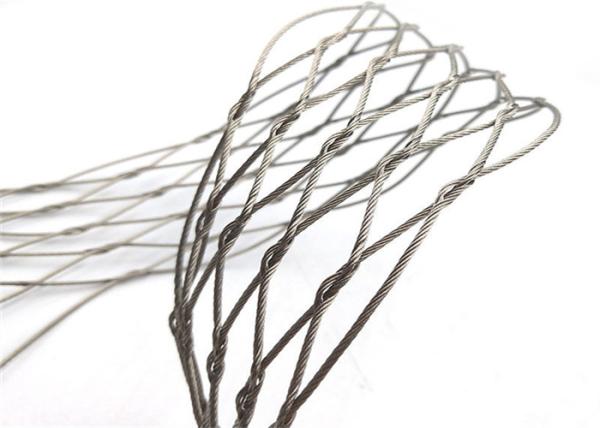

Light Weight Knitted Stainless Steel Ferrule Wire Rope Mesh For Commercial Guard Rail System

Stainless Steel Wire Rope Net Panel Details:

The stainless steel ferrule wire rope mesh is a mesh structure object made of high quality 304/304L/316/316L stainless steel wire rope.

Common specifications: mesh 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, etc. But there is no specific specification because it can weave mesh of any size. This has been loved by designers and users.

We can provide reference according to customer requirements. Its overall mesh width and length can be made in any size.

Commonly used wire rope structure: 7x7 and 7x19 high quality stainless steel wire rope.

Common rope diameter: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 Common materials are: 304, 304L, 316, 316L stainless steel wire rope.

Stainless Steel Ferrule Wire Rope Mesh Main Parameters :

Stainless steel ferrule wire rope mesh for stairs and platforms detailed description:

Our product stainless steel ferrule wire rope mesh is made from high tensile stainless steel AISI 304, 304L, 316 or 316L. Meanwhile, these ropes are available in constructions of 7 x 7,7 x 19 or 1 x 19 and wire diameter from 1mm to 4mm. Other specifications can be customization to match your design requirement.

Stainless Steel Ferrule Wire Rope Mesh Material:

The stainless steel ferrule wire rope mesh is made of stainless steel AISI316 (also known as 1.4401 or A4 quality). We can guarantee this quality 100% through European certificates. For enclosures and safety barrier applications, this steel quality is technically the best solution for price and delivery time.

Different Mesh Types :

There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.

Mesh Types	Wire Diameter	Rope Structure	Details	Material
Knotted Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7		SS304,SS304L,SS316,SS316L
Ferruled Type	1.2mm,1.5mm,1.6mm,2.0mm	7*7
Knotted Type	2.0mm,2.5mm,3.0mm,3.2mm,4.0mm	7*19
Ferruled Type	2.0mm,2.5mm,3.0mm,3.2mm,4.0mm	7*19

​

Mesh Size:

The size of the openings in the mesh is also referred to as the diamond size. A diamond size of 60mm is generally used in stairwells. The diameter of the cable is usually 2mm. Other mesh sizes are also possible, but not common in stairwells.

Mesh Aperture Directions Details:

Stainless steel ferrule wire rope mesh can be tensioned between, in front of or through the posts. In addition, you can choose to tension the nets between an border cable or a tubular frame. In addition, there are various options for detailing the grommets and corners. You can also choose between different mesh directions. View the options below.

Applications:

Stainless steel ferrule wire rope mesh is used for an infinite number of different purposes. The combination of transparency, strength, durability and flexibility makes suitable for various places, for example:

Packing And Delivery Details :

• Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

• Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

• Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.

• As customer's requirements

​About Us:

Several important projects have been completed by Yuntong company in recently years, provide stainless steel ferrule rope mesh and service in good quality for our clients, help them to design the options and install the stainless steel ferrule rope mesh net, and received good reputation from our clients around the world.

Why to choose the stainless steel ferrule wire rope mesh for commercial guard rail system?

• We are specilized in a stainless steel wire rope production base and the cost of obtaining raw materials is relatively low.
• Anping Yuntong founded in in 2007,have rich experience in production and export
• Light weight, high strength, X tend,not easy to corrode.
• Good softness, fatigue resistance, impact resistance, large breaking force and strong overall structure.
• The service life is more than 30 years, close to nature, green and environmentally friendly;
• The perspective is good, the appearance is luxurious, the style is novel, and it is a big landscape in itself.

​FAQ:

Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.

Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel ferrule rope netting,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .

Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.

Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel ferrule rope netting products. Different application scenarios of stailess steel rope mesh comes with different accessories,we will provide you with a detailed installation scheme.

Q : Which countries do you export to?

A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.

​

Founded in 2007. More than 14 years old history. Our clients from more than 60countries, we provide professional services and top quality products for our customers ,our main products: stainless steel wire rope mesh, inox cable webnet,chain link curtain,chain fly screen curtain and decorative mesh.Our company is located in Industrial Park Zone of East Anping County, the famous Wire Mesh Land of China. Our company has the land area of 40,00 square meters, a construction area of 11,00 square meters and a 1W-Grade clean workshop of 1,500 square meters. With over more than 13 years' development, We have followed the vision of "the Best Quality, Timely Delivery, Reasonable Price and Excellent Services" in doing business with our customers. We have won appraisement from our customers with good quality and a high reputation. We sincerely welcome you to visit our factory and would like to establish long-term business relationships with customers both at home and abroad.
