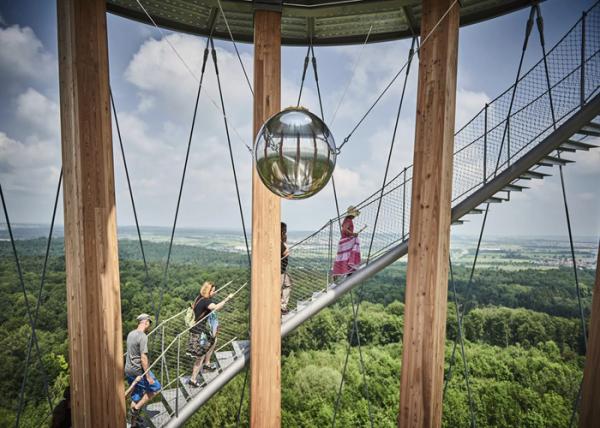

Horizontal Diamond Safety Mesh Stainless Steel Ferrule Rope Netting
For Stairs
Stainless Steel Ferrule Rope Netting Details:
Our stainless steel ferrule rope netting is made of stainless steel
AISI316.
Stainless steel ferrule rope netting produced by Anping Yuntong
with many possible applications. The mesh consists of separate
stainless steel cables that are connected to each other by means of
clamps forming a diamond pattern. In this way a flexible,
transparent, strong and shape-free tension net is created.
| Material | AISI304,AISI316,AISI304L,AISI316L |
| Mesh Type | Stainless steel ferrule rope mesh |
| Application | Anti-fall safety nets,railing infill mesh,balustrade and balcony
mesh,Zoo Enclosure,etc. |
| Features | Flexible,high tensile,safety,soft,x-tend,support customization |
| Cable Structure | 7x7,7x19 |
| Surface Treatment | Polish,pvc coated |
| Mesh Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m,support
customization |
| Mesh Aperture Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Rope Netting Color | White,stainless steel primary color,black,red,blue,custom |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Stainless Steel Ferrule Rope Netting Main Parameters :
Stainless steel ferrule rope netting for stairs infill mesh
detailed description:
Our product stainless steel rope netting is made from high tensile
stainless steel AISI 304, 304L, 316 or 316L. Meanwhile, these ropes
are available in constructions of 7 x 7,7 x 19 or 1 x 19 and wire
diameter from 1mm to 4mm. Other specifications can be customization
to match your design requirement.
Stainless Steel Ferrule Rope Netting |
| Item | Rope Diameter | Mesh Hole Size | Normal Break |
| inch | mm | inch | mm | lbs |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other
is knotted also named inter - woven type.You can choose anyone you
prefer.
| Mesh Types | Wire Diameter | Cable Structure | Details | Material |
|---|
| Knotted Type | 1.2mm,1.5mm,1.6mm,2.0mm | 7*7 |  | SS304,SS304L,SS316,SS316L |
| Ferruled Type | 1.2mm,1.5mm,1.6mm,2.0mm | 7*7 |
| Knotted Type | 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm | 7*19 |  |
| Ferruled Type | 2.0mm,2.5mm,3.0mm,3.2mm,4.0mm | 7*19 |
Mesh Size:
The size of the openings in the mesh is also referred to as the
diamond size. A diamond size of 60mm is generally used in
stairwells. The diameter of the cable is usually 2mm. Other mesh
sizes are also possible, but not common in stairwells.
Mesh Aperture Directions:
Applications:
Stainless steel ferrule rope netting is used for an infinite number
of different purposes. The combination of transparency, strength,
durability and flexibility makes suitable for various places, for
example:
- Horizontal cable mesh
- Safety barriers with cable mesh
- Green facades with cable mesh
- Railings with cable mesh in a frame
- Link holes and stairs with cable mesh
- Railings with mesh between peripheral cables
- Special projects with stainless steel cable structures
What can stainless steel ferrule rope netting do for you?
Widely Usages | Description | Picture Show |
| Fall Protection | stainless steel ferrule rope netting for railing infill
mesh,balcony mesh,bridge,stairs and paths.With high
strength,flexibility and inpact resistance. |  |
| Architecture Mesh | stainless steel ferrule rope netting is the ideal to be used as
building facades and green wall to encourage growth of climnong
plants and generally seen in parking garages and urban
greenways,etc. |  |
Animal Enclosure & aviary netting | As we know,the stainless steel ferrule rope netting is usually as
zoo mesh and aviary netting,ss rope mesh net is perfect for zoo
cages,because it is flexible,soft,flat to prevent impact damages |  |
| Fence & safety net | Stainless steel ferrule rope netting is also used as a garden
fences,safety fence in stadium partition fence and safety net that
prevents suicide to the largest extent. |  |
Packing And Delivery Details :
Plastic foam and Water-proof Cloth for inter packing ,Fumigated
wooden cases for outer packing.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by
sea.
Lead time:The order could be arranged within 24hours, lead time is
between 7-15 days depending on the quantum of order.
As customer's requirements
About Us:
Several important projects have been completed by Yuntong company in recently years, provide stainless steel ferrule rope mesh and
service in good quality for our clients, help them to design the
options and install the stainless steel ferrule rope mesh net, and
received good reputation from our clients around the world.
Six Reason Why to use the sstainless steel ferrule rope netting:
Using high quality stainless steel ferrule rope netting material
with high strength and thoughness.
Flexible stainless steel ferrule rope netting structure,high impact
resistance and load capacity.
Superb corrosion resistance made these stainless steel ferrule
rope netting ideal to be used in the harshest condition.
Our stainless steel ferrule rope netting can be used for more than
30 years owing to its great environtment resistance.
Competitive price,low even no maintenance and long life span allows
for high cost effectiveness.
Yuntong stainless steel ferrule rope netting is easy to
install,dismantle as well as reused.
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be
provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as
the stainless steel ferrule rope netting,decorative net,metal
aluminum mesh.We have a professional production line of metal wire
mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money
Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel ferrule
rope netting products. Different application scenarios of stailess
steel rope mesh comes with different accessories,we will provide
you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA,
Germany, Thailand,South Korea and so on.
